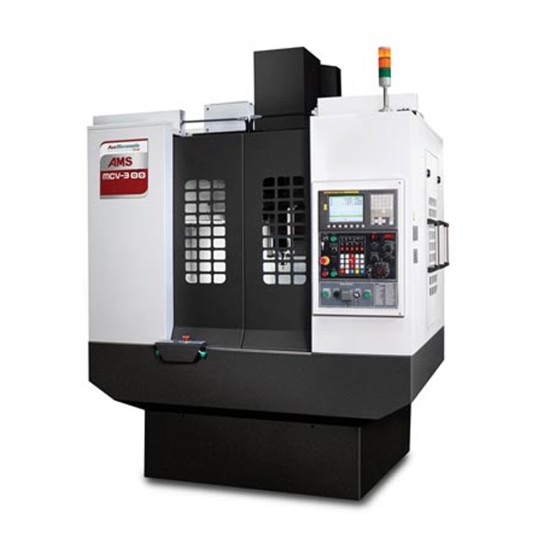

Ace MCV 300

Features of Vertical Machining Center – MCV 300

• LM guideways for all three axes
• 32 m/min rapid for all three axes
• Disc type tool changing system
• Chip to chip time of 4.5 sec
• 12 tool ATC capacity

Capacity

• Table longitudinal travel ( X – Axis) mm 400
• Table cross travel ( Y – Axis) mm 350
• Headstock travel ( Z – Axis) mm 320
• Spindle nose face to table top mm 135-455
• Table height from floor mm 830
